X11CB Event Recording Annunciator


$00,00 $00,00

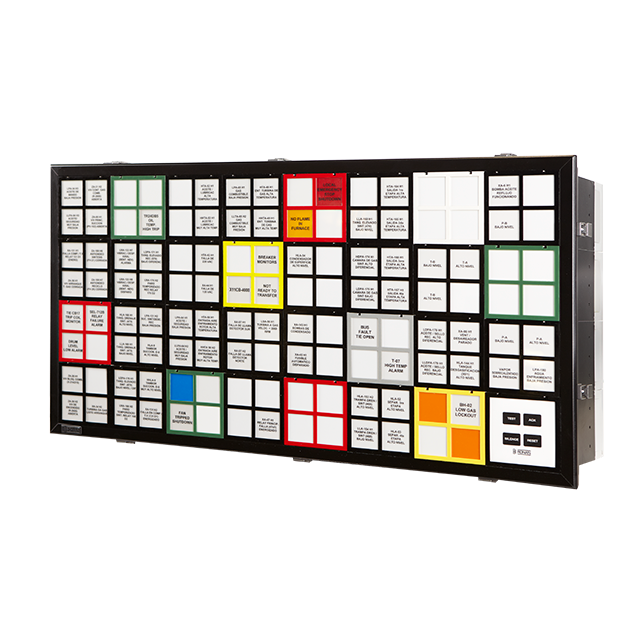

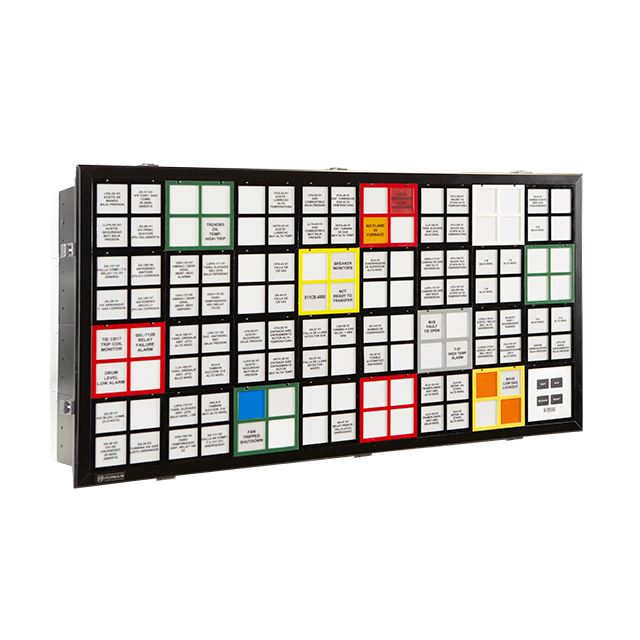

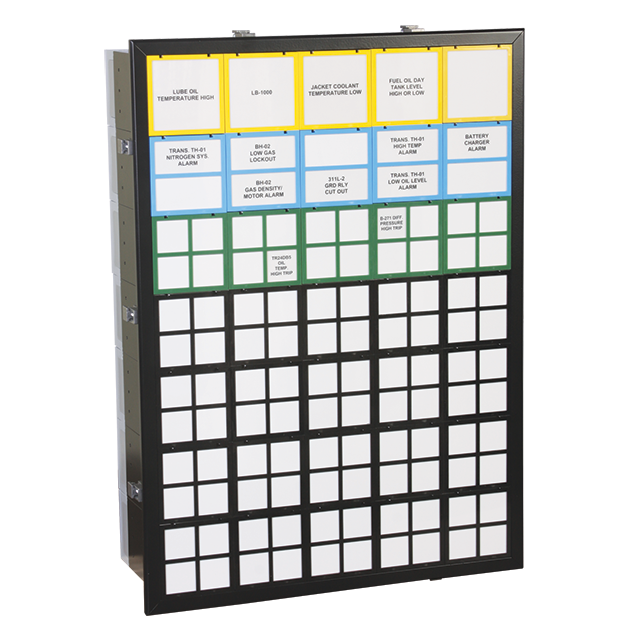

The X11CB Event Recording Annunciator is the latest generation of Ronan Systems state-of-the-art annunciators offered with LED window modules. The X11CB is designed for the process and power industries, offering the most advanced data acquisition technology and monitoring, along with Ronan System's high quality and performance standards.


The Ronan Systems X11CB Event Recording Annunciator is designed for the process and power industries, this annunciator is the most advanced data acquisition technology and monitoring system in the industry today. X11CB design includes all the functionality from previous models and delivers a superior level of alarm monitoring and quality performance above other brands. This annunciator is equipped with an internal Interface Module that ties to an Ethernet network and is managed by Ronan Systems configuration software and other associated applications.

This system supports industrial protocols which enables a communication link with a host on a local or plant network.

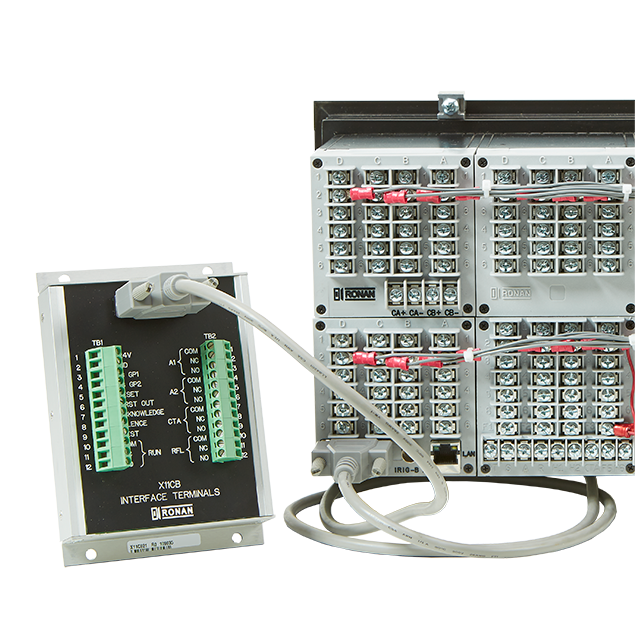

The Interface Module continuously monitors system functions and Alarm Modules via a rugged CAN bus interface system, communication interruption can be diagnosed via dedicated LED or relay contact closure.

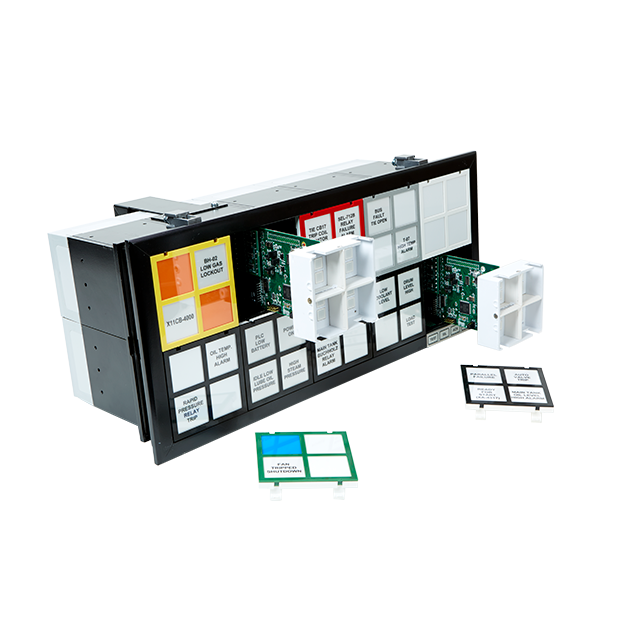

The X11CB Annunciator system features one to four windows per module, allowing for a maximum monitoring capacity of 400 alarm points.

  • Alarm Capacity: 100 alarm modules with up to four alarm points each on a single interface module
  • Remote monitoring through Ethernet interface
  • Event time stamping to 1mS resolution with date and time of day correlation when an external IRIG-B source is provided
  • Event recording capability with local IM storage up to 1000 events
  • Software configurable
  • Event history can be downloaded to open-source SQL database
  • Compatible with Ronan Systems X1000 SER and X110 Remote Alarm Annunciator
  • Network protocols: TCP/IP – UDP Ronan Systems Proprietary, MODBUS over TCP, DNP3 (with optional X200 REC-UCM-2)
