Field Terminal Assemblies (FTA)
$00,00 $00,00

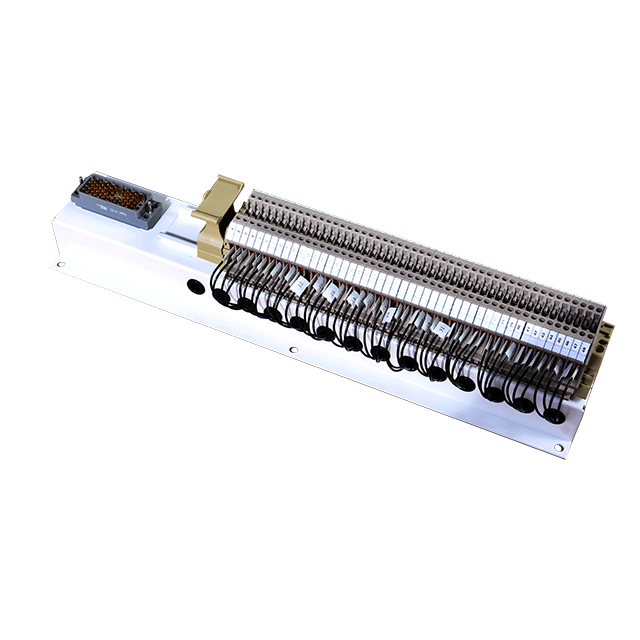

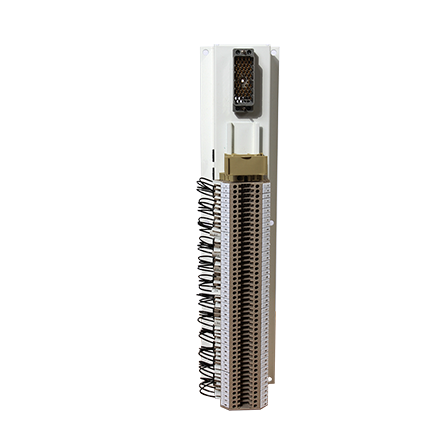

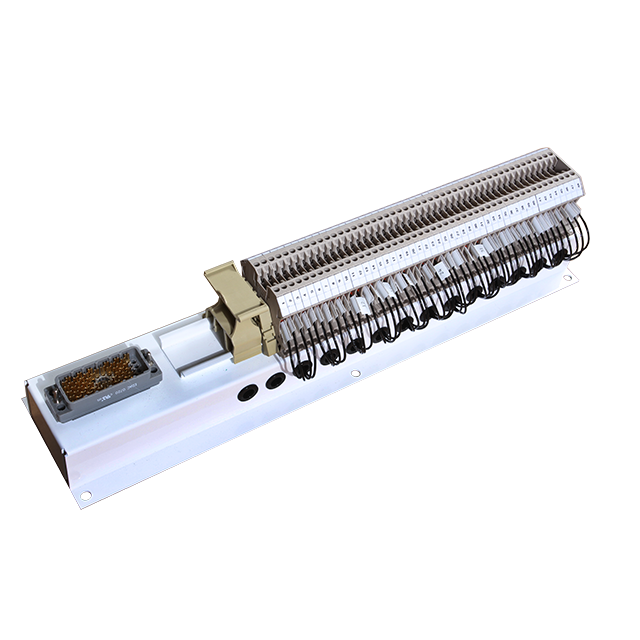

Standard Field Termination Assemblies (FTAs) consist of 1 set of terminals for each input and an Elco connector for connection to a Ronan multiplexer.
Standard Field Termination Assemblies (FTAs) consist of 1 set of terminals for each input and an Elco connector for connection to a Ronan Systems multiplexer.
- 32-point FTA: Din-type terminals
- Accepts Ferrule 16-22
- 250 spacing
- 64-point FTA: Quick disconnect terminals
- Accepts Ferrule 16-22 qa
- 350 spacing
- Customer specified FTA: Din-type or quick disconnect terminal assembly available with:
- Single level or dual-level terminals for multiple output to DCS, PLC or plant computer
- Isolate field contact switch
- Field contact status indicators
- Diode gating and opto-isolated terminals
- Ground fault detection
- Additional Elco for output to reflash
- Mating Field Terminal Cable Assemblies:
- 38-pin Elco connector on each cable end
- 38-pin Elco connector for mating FTA connector and flying leads (pigtail)
- 150v multiconductor PVC jacket
- 600v multiconductor XLPVC Jacket
| Field contact isolation switches |
|---|
| Diode gating and opto-isolated terminals |
| Ground fault detection |
